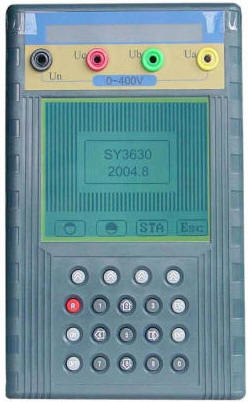

Portable Three Phase Energy Meter Test Set







Name:Portable Three Phase Energy Meter Test Set
Model No.:SY 3630
Brand Name:Songyang
Country of Origin:China
Minimum Order:1 Set


Functions and Features:

  • Three phase active or reactive electricity energy meter

  • Calibrate three phase, single phase, active or reactive meter

  • Measure Vrms of three phase or single phase;

  • Measure Irms of three phase or single phase;

  • Measure active power of three phase or single phase;

  • Measure reactive power of three phase or single phase;

  • Measure apparent power of three phase or single phase;

  • Measure power factor of three phase or single phase;

  • Measure phase angle between voltage and current;

  • Measure frequency of power line;

  • Display vector diagram;

  • Display waveform of U and I;

  • Analyze and display content of harmonic of U and I;

  • Store, look and transmit measured data;

  • Connect to PC, reading record data and real-time measured data by PC, and download calibration parameter.

Technical Parameters:

Test Accuracy class, Resolution, and Basic Error

  Accuracy class   Resolution Basic Error
0.1 0.2 0.5 Class0.1 Class0.2 Class0.5
Voltage (R.M.S) 0.1 0.2 0.5 0.01V 0.1% 0.2% 0.5%
Current (R.M.S) 0.1 0.2 0.5 0.001A 0.1% 0.2% 0.5%
Active Power 0.1 0.2 0.5 0.01W 0.1% 0.2% 0.5%
Active Energy 0.1 0.2 0.5 ┄ 0.1% 0.2% 0.5%
Reactive Power 0.1 0.5 1.0 0.01var 0.2% 0.2% 1.0%
Reactive Energy 0.2 0.5 1.0 ┄ 0.2% 0.5% 1.0%
Phase Angle 0.1 0.2 0.5 0.01° 0.1% 0.2% 0.5%
Frequency 0.1 0.1 0.1 0.002Hz 0.005Hz
